Base Line Testing & Performance Guarantee Test

Boiler performance test programs have been conducted with various objectives including baseline performance characterization, new and retrofit equipment acceptance testing, and combustion and pollution system tuning and optimization. AESPL personnel are highly familiar with ASME test procedures. Examples of test projects AESPL undertakes include:

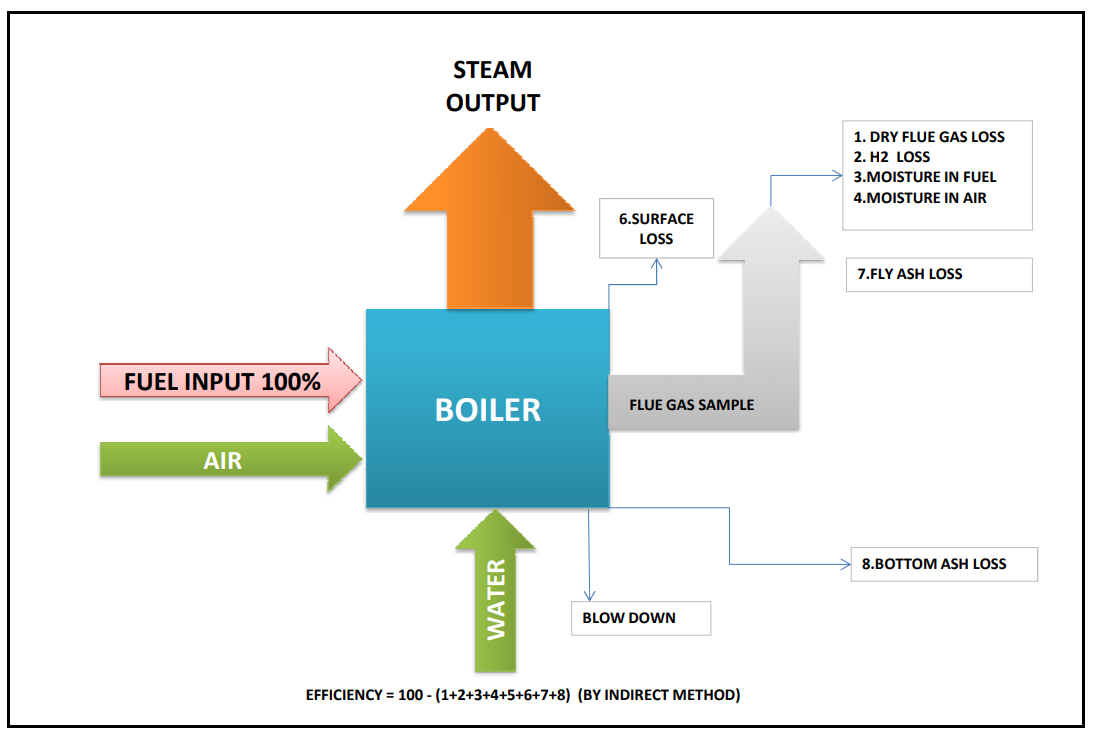

Boiler Efficiency and Performance Indirect Method Diagram

Boiler Performance & Indirect Efficiency Determination System

Testing & Optimization Scope

Mill Performance in PC Fired Boilers

Mill fineness - 50, 100, 200m, R-R plots
Fuel distribution - coal pipe flow deviation, % mill output
Fuel-air velocities

Combustion System Performance

Covers PC, BFB, CFB, Oil & Gas fired, and Biomass fired boilers
Furnace exit gas profiles - O2, CO, NO, HVT
Economizer outlet gas profile - O2, CO, NO, CO2, SO2
Particulate loading, LOI, UBC
Fuel and Ash analyses
Thermal efficiency determination of the complete system

Fan Performance in All Boiler Types

FD, ID, and PA fan operating performance characterization
Static and dynamic pressure measurements
Flow rate vs. power consumption optimization

Air Heater Performance in PC Boilers

Inlet & outlet gas and air temperature profiles
Air heater leakage evaluation - Inlet, outlet O2 grid analysis
Thermal effectiveness and heat recovery optimization

ESP Performance (Electrostatic Precipitator)

Inlet & outlet velocity & particulate measurement
Particulate collection efficiency determination
Flue gas conditioning system optimization

Stack Emissions Characterization

Particulate emissions monitoring
SOx and NOx continuous measurement
CO, CO2, and O2 gas concentration analysis
